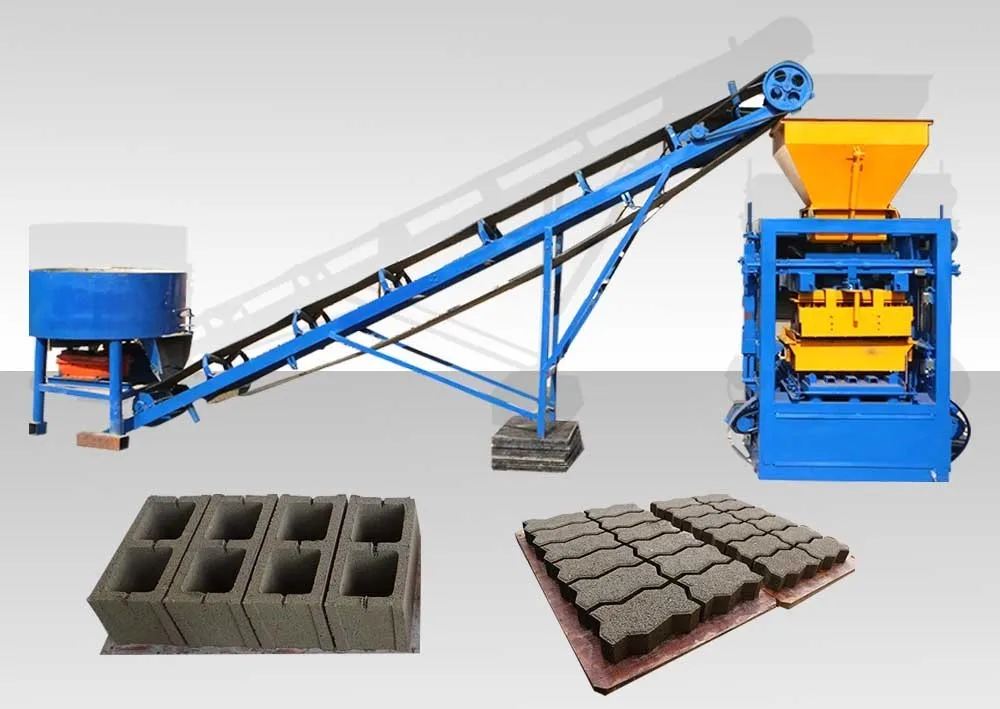

QT4-24 semi-automatic hollow brick machine, high adaptability and multi function, not only suitable for making concrete block, but also suitable for fly ash, slag and other materials, with different moulds, can produce various specifications of building bricks, hollow brick,solid brick and porous brick etc.
♦1.QT4-24 is made of high-performance steel Q345. Thus it has advantages of high toughness, wear and tear resisting and high strength.
♦2.The semi-automatic concrete block making machine QT4-24 can produce hollow blocks,solid blocks and paving blocks just by changing the moulds.
♦3.In the process of concrete block moulds production, precise line cutting and carburizing treatment are adopted to prolong its service life.
Parameter:
|
Dimension host machine |
2060×1730×2850mm |
Host machine power |
22.05KW |
| Voltage | 380V/50HZ |
Vibration force |
35.5KN |
|
Mould period |
24S |
Capacity |
22.05KW |
|
The size of the pallet |
850×550×30mm |
Mixer model |
JD350 |
|
Weight of the machine |
3T |
|
|
Capacity:
|
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
|
400X100X200 |
7 |
630-840 |
5040-6720 |
|
400X150X200 |
5 |
450-600 |
3600-4800 |
|
400X200X200 |
4 |
360-480 |
2880-3840 |
|
400X250X200 |
3 |
270-360 |
2160-2880 |
|
240X115X 52 |
24 |
2400-2880 |
19200-23040 |
|
All kinds of hollow,solid and paver block |
|||
Raw material :
1. 8%-10% cement ,30%-40% sand, 50%-60% stone
2. 8% cement,60% sand,Fly ash 30%,2% gypsum.
