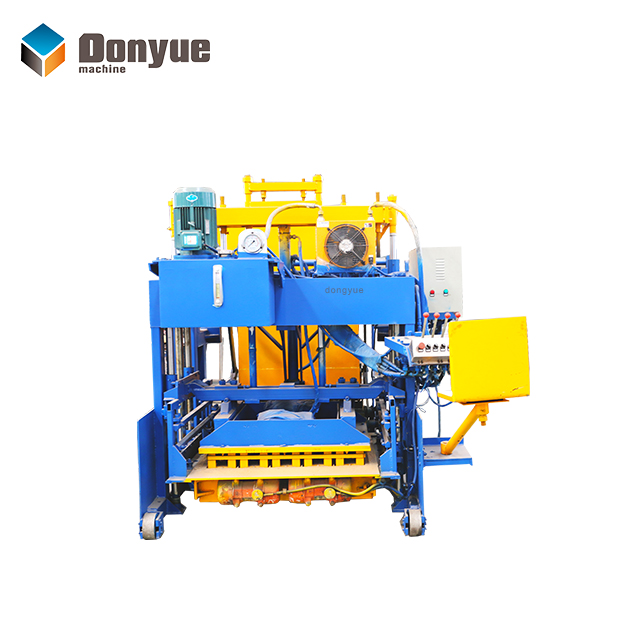

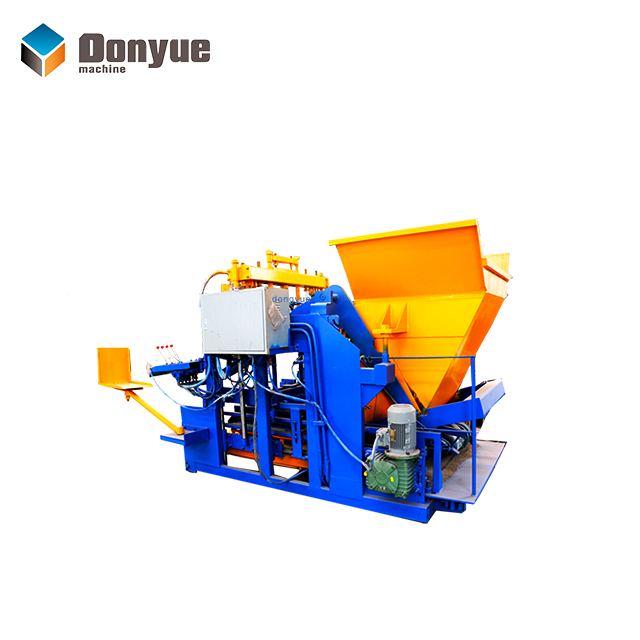

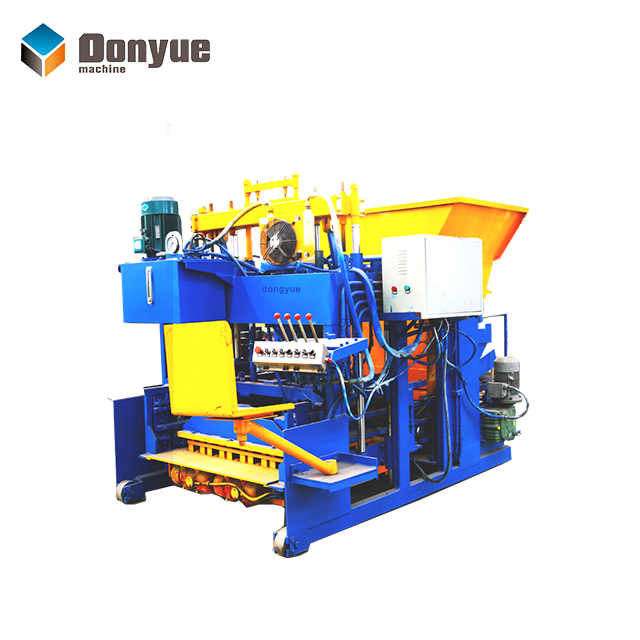

QTM10-15 Mobile block machine

  • mobile block machine
  • mobile block production line
  • Product description: Mobile-block-machine
  • INQUIRY

mobile block machine


1. Function

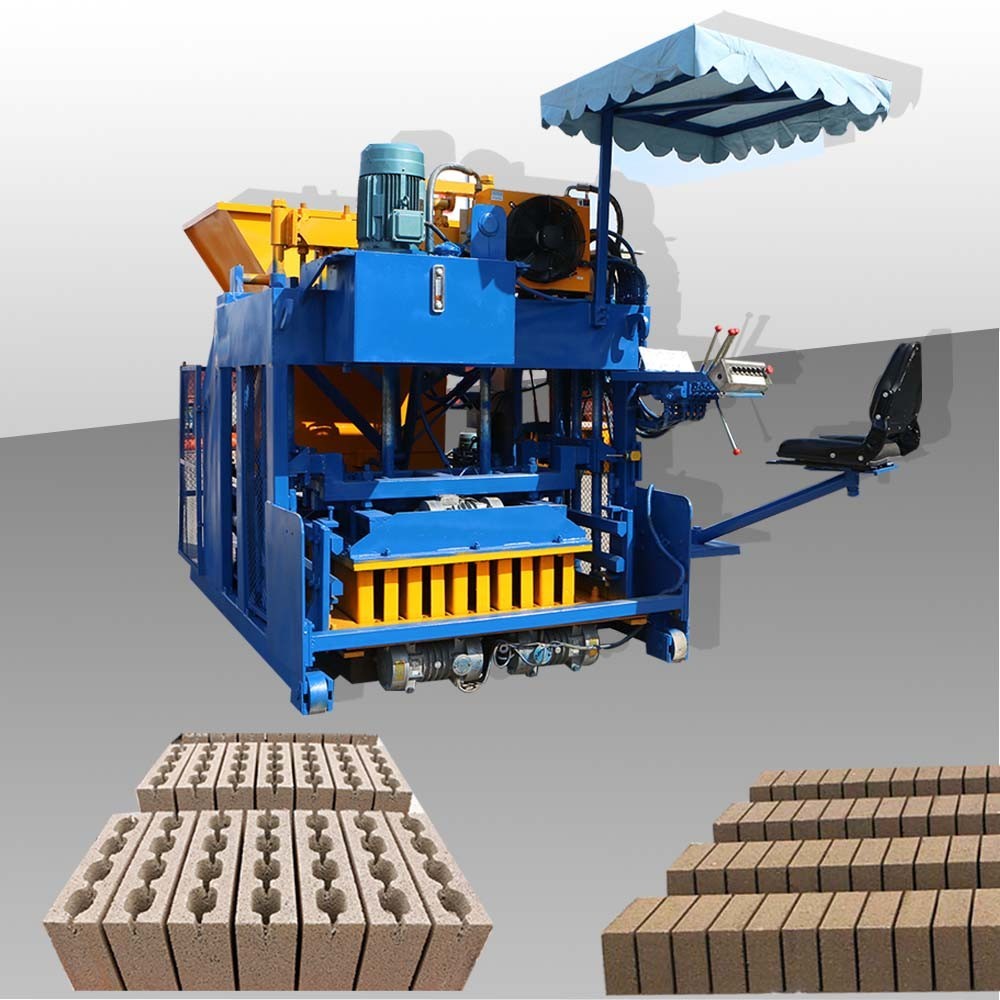

Egg laying cement concrete hollow block making machine can produce different hollow blocks,solid blocks and kerbstone by changing moulds.
2. Advanced technology
This machine adopt hydraulic molding technology, so it can produce stronger, smooth and high quality blocks. And electric walking technology adopted to this machine, so the machine can easily and simply move to convenient place.
3. High quality mould
The moulds adopt precise wire cutting technology and carburizing treatment technology to prolong service life, elaborate process and rigorous testing ensure that the mold has the best quality.
4. High capacity
Hydraulic moving cinder fly ash concrete building block making machine can produce 16000-32000 pieces blocks per day according block size.

Technical Parameters
Overall dimension
3150x1800x2400MM
Total Machine Power
16KW
Mould period
10-15S
Demould
Hydraulic
Voltage
380/415/440/220
Mixer Model
JS500
Production Capacity
Size (LxWxH)
pcs/mould
pcs/hour
pcs /shift
400x200x200MM
10
1800-2100
14400-16800
400x150x200MM
14
2520-2940
20160-23520
400x100x200MM
20
3600-4200
28800-33600
