QT6-15 Automatic block production lineQT6-15 Automatic block production line

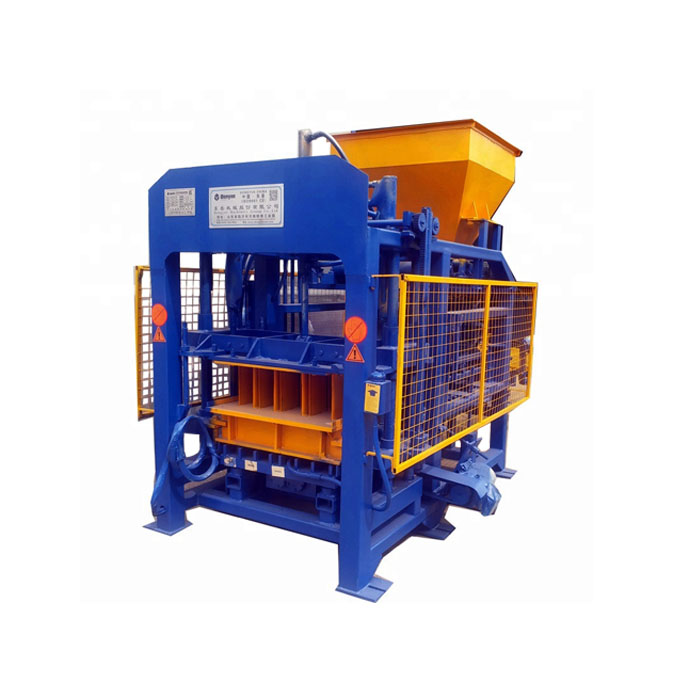

QT6-15 Automatic block production line


   Product Description

  1.  Full automatic block paver brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
  2.  Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
  3.  Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
  4.  Switches will use Japan Omron or France Schneider band, motor will use Siemens or ABB brand.


Main technical parameters
Dimension of Host Machine
3200x2300x2750MM
Host Machine Power
45kw
Wight Of host machine
8.35Tons
Vibration Force
60-80KN
Moldling area
1196x880MM
Mixer Model
JS750
1Water consumption
10-15 Ton/ day
Pallet Size
1150x720x25/30MM
Workshop area
250-300m2
Voltage
380/415/440
Theoretical Production Capacity
Size
PCS /Mould
PCS/Hour
PCS/8 Hour
Hollow 400x200x200MM
6
1080-1440
8640-11520
Hollow240x115x90MM
18
3240-4320
25920-34560
Solid 240x115x530MM
40
7200-9600
57600-76800
Paver 200x100x60MM
27
4860
38880
Paver 200x163x60MM
18
3240
25920

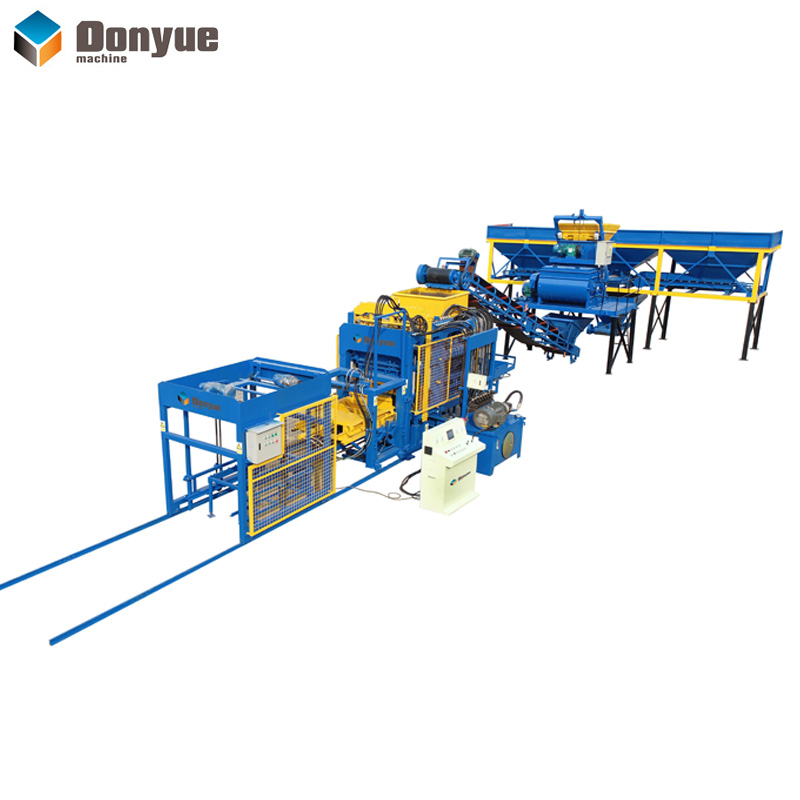

Whole line detail
