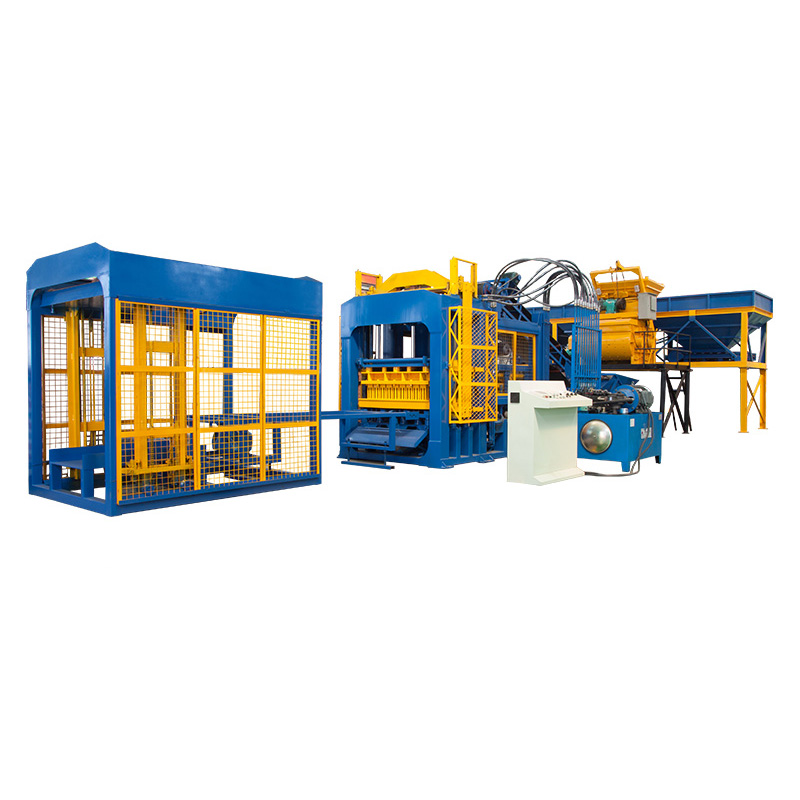

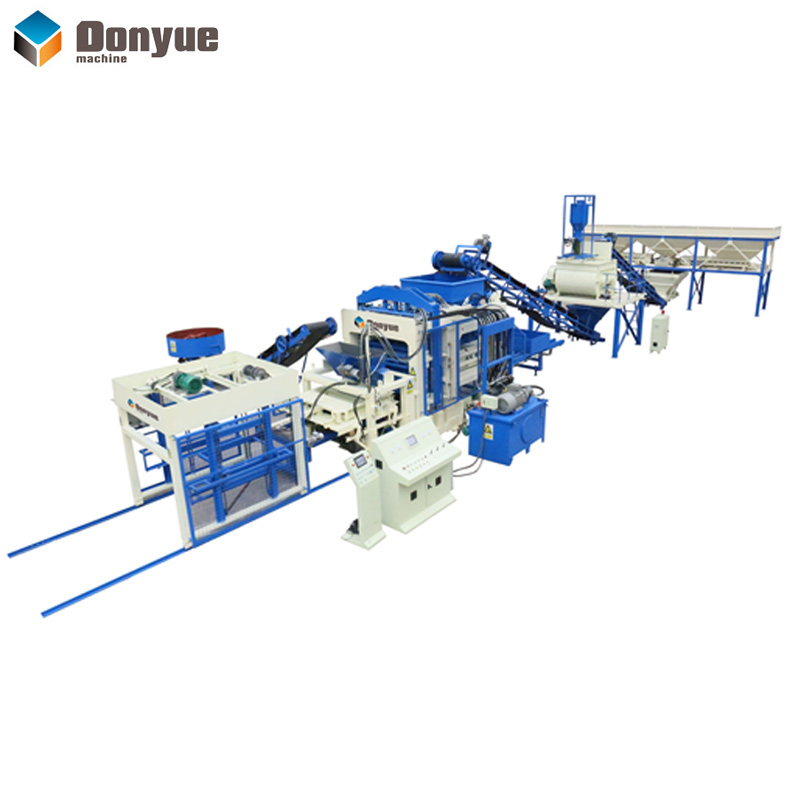

1.QT12-15 Brick Production Line is fully automatic brick making machine, which can make different sizes of hollow blocks, solid bricks, paver and curbstone by changing moulds.
2. QT12-15 Brick Making Machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
|
MAIN SPECIFICATIONS
|
|||
|
Dimension of host machine
|
3500x2300x2930mm
|
Power of host machine
|
37kw
|
|
Weight of host machine
|
9.8T
|
Vibration force
|
100KN
|
|
Molding area
|
1196x880mm
|
Mixer Model
|
JS750
|
|
Water consumption
|
10-20T/Day
|
Pallet size
|
1300x900x30mm
|
|
Workshop
|
260M2
|
|
|
|
Theoretical Production Capacity
|
|||
|
Size (LxWxH)
|
Pcs /Mould
|
Pcs /Hour
|
PCS /8 Hour
|
|
Hollow 400x200x200MM
|
8
|
1440-1680
|
11520-13440
|
|
Hollow 400x100x200MM
|
16
|
2880-3360
|
23040-26880
|
|
Solid 230x110x70MM
|
33
|
5940-6930
|
47520-55440
|
|
Paver 200x110x60MM
|
32
|
5760
|
46080
|
|
Paver 200x163x60MM
|
20
|
3600
|
28800
|
1) The motor for the host machine is Germany SIEMENS brand or ABB brand
2) Control PLC: we select original Japan Mitsubishi PLCcombine with independently develop machine control program, assure stable and high efficiency working status
3) The switch will use France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.
